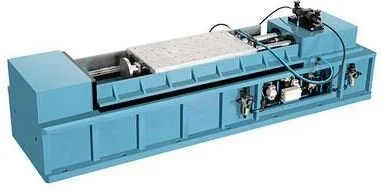

HAS Series Pneumatic Horizontal Shock Test System

TestSmart HAS series horizontal impact testers are used to simulate the horizontal shock effects of rail switching, truck docking, and other types of high G short duration horizontal impacts. With payload capacities from 100lbs to 2,200lbs and over 1,000g capability, TestSmart has the right machine for your application. The horizontal shock machines can also be used for high-cycle bump testing applications.

Features:

  • Shock absorption integrated into structure to not transfer energy into the floor or building

  • Capable of low-level G impacts

  • Shock control system and data acquisition

  • Worldwide Service

  • Compact Design

  • Precisely controlled impact energy even for highly-deformed specimens

  • Multiple waveform generators available, half-sine, square-wave & sawtooth.

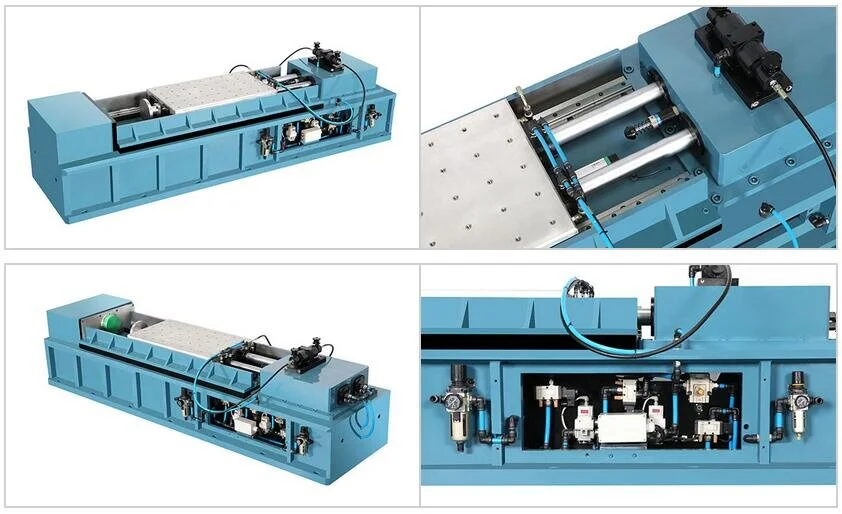

Click to enlarge

Custom sizes and performance capabilities available, please contact us for your special requests.
